ROKIT Invivo Bio 3D Printer Premium

$50,000.00

Invivo Bio 3D Printer Highlights

  • Dual/Modular Extruder & Dispenser
  • 7+ Different Bio Materials to Print With
  • Resolution: Extruder 0.2mm/Dispenser 0.05mm
  • Android OS/ WiFi/ IoT
  • Components with FDA Standart Compliance
  • Temperature Control Bed & Dispenser (-10°C ~ 80°C)
  • Ultra-precise Hot Melt / Pneumatic Dispenser

100 in stock

Description

ROKIT Invivo Multi-Use Hybrid Bio 3D Printer

​Rokit Invivo is the most sophisticated and hi-end commercial grade bio 3D printer today. Rokit Invivo allows users to create versatile 3D Cellular structures, and extensive designs with multitude of different materials known as bioinks. By covering synthetic bio polymers such as PCL, PLGA, PLLA, and various hydrogels for scaffold generation, Rokit Invivo is a tool optimized for biomedical researchers. Rokit Invivo provides researchers with a modular system and sterile environment. Invivo 3d bioprinter users can choose two out of three types of nozzles(extruder, mechanical dispenser, hot melt pneumatic dispenser) with additional temperature control function(-10°C ~ 80°C) to optimize Invivo for their own research purpose. Rokit now only provides medical grade PLGA, PLLA, PCL filament for Invivo extruder, but also gelatine based photo-curable bioink called Invivogel to print wide range of soft 3D cellular structures with Invivo dispensers. Additionally, Invivo provides an uncontaminated environment because it was built as a closed system and equipped with a H14 grade HEPA filter for external air filtration, and 253nm UV lamps for stage sterilization. Equipped with Android OS touchscreen, users can upload/download and print 3D files via wifi network, while being able to monitor the printing progress with their smart device. Invivo provide users with a powerful and versatile biomedical research tool that gives one the ability to take a digital file and bring it to life in their very own lab.

Invivo Bio 3D Printer Features

  • Dual/Modular Extruder & Dispenser
  • 7 Different Bio Materials to Print With
  • Resolution: Extruder 0.2mm/Dispenser 0.05mm
  • Android OS/ WiFi/ IoT
  • Components with FDA Standart Compliance
  • Temperature Control Bed & Dispenser (-10°C ~ 80°C)
  • Ultra-precise Hot Melt / Pneumatic Dispenser

Invivo Bio 3D Printer Materials

Synthetic Polymer Wires

  • PCL (Polycaprolactone)
  • PLGA Poly (Lactic-co-glycolic acid)
  • PLLA (Poly-L-lactic acid)
  • Any Other Polymers for Hot Melt Extreusion

Bioinks

  • Hydrogel with Cell Growth Factors Mixtures

Powder Mixtures

  • Hydroxy Apatite
  • Chitosan

Hydrogels

  • Collagen
  • Gelatin
  • Fibrin
  • Hyaluronic Acid
  • Alginate

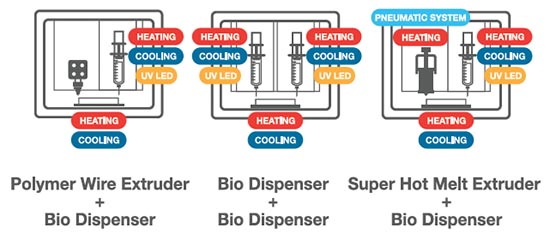

ROKIT Invivo Premium Bio 3D Printer Modular System

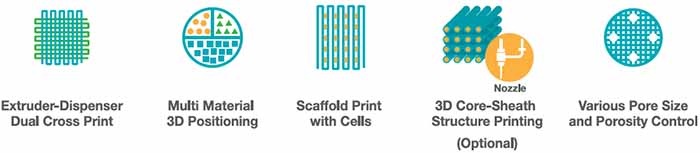

ROKIT Invivo Premium Bio 3D Printer Design Applications

***NOTE: Do not operate on the deck while UV lamp is ON!


Additional information

Weight57.00 lbs
Printing System

Polymer Wire Extruder + Bio Dispenser + Super Hot Melt Extruder

Hardware

On-Board Computer with LCD Touch Screen with Android OS

Resolution

Extruder 0.2mm/Dispenser 0.05mm

Hepa Filter

H14(99.995 ≤ 0.3µm D.O.P.)

UV Lamp

Sterilizing UV Lamp(15W/254nm)

UV LED

365nm

Extruder

Detachable Nozzle/Tube System

Bio Dispenser

Screw Type of Bio Dispenser to avoid Contamination 10ml Syringe

Bio Dispenser Function

Cooling Heating System(-10°C ~ 80°C)

Bed Plate

Cooling Heating System(-10°C ~ 80°C)

Nozzle Size

Extruder: 0.2mm, 0.4mm; Bio Dispenser: 0.05~0.8mm; Pneumatic Dispenser: 0.1~0.5mm

Pneumatic Dispenser

High Temperature Melting System ~350°C

Build Volume

100mm x 100mm x 90mm

Printing Speed

5~20mm/sec
