Sharebot Voyager WARP High Speed DLP 3D Printer

Voyager WARP Highlights

  • Printer size 65x25x40 cm.
  • XY resolution 50 micron.
  • Z Resolution 5-100 micron.
  • Print Speed: 100mm/h



Description

Sharebot Voyager WARP High Speed DLP 3D Printer with WARP Technology

Sharebot Voyager WARP is a high speed professional, DLP (Digital Light Processing) 3D printer. It can create high precision models faster than any other professional tool in its category. It works with a very castable resin designed for the creation of jewellery models. The fastest 3D Printer in its category! Voyager WARP uses the innovative WARP system developed by Sharebot R&D in collaboration with BlueCat experts: the system allows to optimize the printing process so that the needed exposure time for every single layer is reduced to just few hundreds of a second. Thanks to WARP technology the printing speed for a model with RW-16 castable resin is increased from 10mm/h to 100mm/h, improving the printing process and optimizing the workflow. The integrated FULL HD projector strikes the printing material (resin) with a UV image. Once the resin has been hit by the ray, it solidi es. Due to the Z axis vertical movement, the process is repeated layer by layer to create the nal model. The printer management and control software is integrated: Generate support material for your model directly on your PC and transfer the print data to the printer via web connectivity, managing the full printing process with the device.

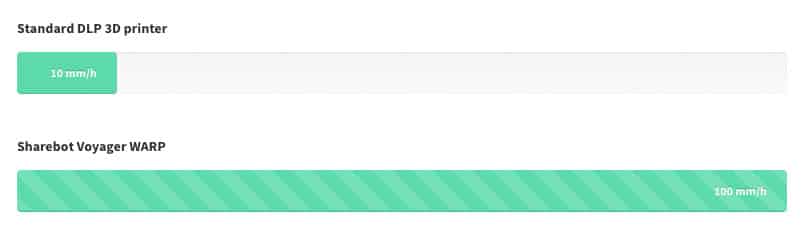

Voyager WARP Speed

Voyager WARP FULL HD Projector

The integrated FULL HD projector strikes the printing material (resin) with a UV image. Once the resin has been hit by the ray, it solidifies. Due to the Z axis vertical movement, the process is repeated layer by layer to create the final model.

Voyager WARP Printing Process Management

The printer control software is integrated: create support for your model directly on your PC and transfer the print data to the printer via web connectivity, managing the full printing process with the device.

Voyager WARP Applications

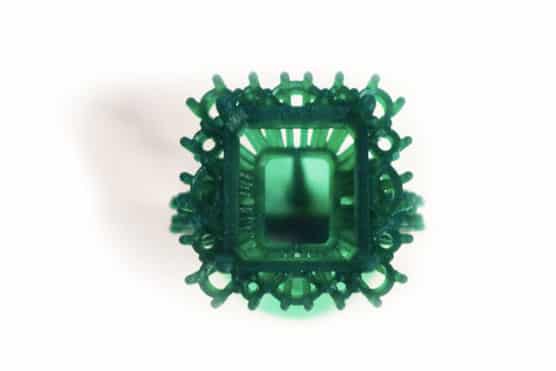

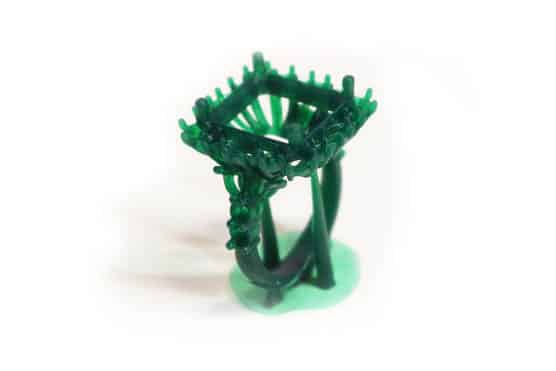

JEWELLERY: Sharebot Voyager WARP is the fastest professional 3D printer dedicated to jewel making world. WARP technology provides high speed and maximum precision, making the Sharebot Voyager WARP the highest performing DLP 3D printer of its kind and the best tool dedicated to the production of castable models. The printer uses easy to cast resins with an exceptionally high level of detail. Sharebot Voyager WARP is compatible with all the main 3D modeling software commonly used in jewellery world.

Additional information

Build area

60 x 100 x 100 mm

Printing speed with RW-16 castable resin

100 mm/h

XY resolution

50 micron

Z Resolution

5-100 micron

Wavelength

405 Nm

Compatible resin

RW-16 castable

Full hd lev uv projector

1920 x 1080 px

Printer size

65x25x40 cm

Weight

28kg

Support material generation software

Integrated

Web management software

Integrated

Sharebox3d included

1/5 ghz quad core, 1GB
