Sharebot Andromeda Professional SLA 3D Printer

Andromeda Highlights

  • Printing volume: 250x250x250 mm
  • Laserdot diameter: 30-200microns
  • Z resolution: 5-100 microns
  • Applications: Dental, Jewelry, Prototyping and Manufacturing.

Description

Sharebot Andromeda Professional SLA 3D Printer

The Sharebot Andromeda is a professional 3D Printer with a large printing volume that uses SLA 3D Printing technology. It creates high precision and definition models even on the smallest detail and surface. Andromeda is the perfect professional tool to start a series production of small and large size models. Sharebot Andromeda is able to optimize the 3D printing process thanks to its peculiar laserdot diameter so that it\’s possible to have the better object definition with rapid filling. Thanks to the 24 bit DAC the resolution is constant and at the maximum level on the entire printing plate and it can be used to create many different small size models or a big size object on the entire building volume (250x250x250 mm). Sharebot Andromeda uses different resins developed by Sharebot R&D department: depending on the application field, Sharebot provides a wide choice of professional resins dedicated to each application.

Sharebot Andromeda Unique Features

  • High precision and maximum resolution on every detail
  • Printing volume: 250x250x250 mm
  • Laser diode wavelenght: 405 nM
  • Compatible materials: Sharebot Andromeda dedicated resins
  • Laserdot diameter: 30-200microns
  • Z resolution: 5-100 microns
  • Sharebot Andromeda software interface: Integrated

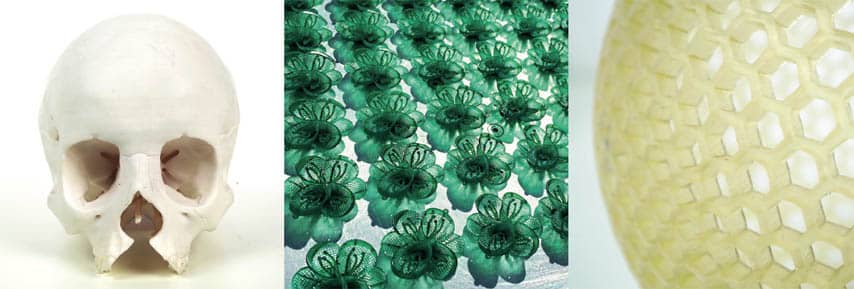

Sharebot Andromeda Applications

  • Dental: Sharebot Andromeda is a professional tool for every dental laboratory thanks to large printing volume, able to realize a complete models series injust few hours, optimizing the laboratory work ow.
  • Jewellery: Sharebot Andromeda realizes castable models and prototypes for jewellery. Its big printing volume allows to realize many di erent objects in just a printing process with high quality castable resins.
  • Prototyping: Thanks to the SLA technology, the printer can quickly realize big size models with perfect surface de nition and a solid and resistant lling. The possibility to use di erent resins allows to create functional prototypes for di erent professional elds.

Sharebot Andromeda High Definition and Resolution

Sharebot Andromeda is able to optimize the 3D printing process thanks to its peculiar laserdot diameter so that it’s possible to gain better object definition with rapid filling. Thanks to the 18 bit DAC the resolution is constant and at the maximum level on the whole printing plate and it can be used to create different small size models or big size objects on the entire building volume (250x250x250 mm).

Dedicated Materials

Sharebot Andromeda uses different resins developed by Sharebot R&D department: depending on the application field, Sharebot provides a wide choice of professional resins dedicated to different application.

Additional information

Build volume

250 x 250 x 250 mm

Laser diode power

300 mW

Laserdot diameter

30-200 microns

Z resolution

5-100 microns

Galvanometer

DAC 18 bit

Laser diode wavelength

405 Nm

Compatible resins

Sharebot Andromeda dedicated resins

Webcam

Integrated

Dedicated software interface

Integrated

Printer size

130 x 50 x 50 cm

Weight

160 kg
