Roboteq Brushed DC Motor Controller HDC2460S Single Channel/300A/60V

Comments | Write a review

Brand: Roboteq

Availability: In stock


Found it cheaper?

Click here to price match!

Available Options

25-pin to RC Radio Cable Optional 25-pin to RS232 Cable Break-out board BOB25H

Roboteq Brushed DC Motor Controller HDC2460S Single Channel/300A/60V

The Roboteq's HDC24xx Motor Controller is designed to convert commands received from a RC radio, Analog Joystick, wireless modem, PC (via RS232 or USB) or microcomputer into high voltage and high current output for driving one or two DC motors. Designed for maximal ease-of-use, it is delivered with all necessary hardware and is ready to use in minutes. The controller features a high-performance 32-bit microcomputer and quadrature encoder inputs to perform advanced motion control algorithms in Open Loop or Close Loop (Speed or Position) modes. The HDC24xx features a high number of Analog, Pulse and Digital I/Os which can be remapped as command or feedback inputs, limit switches, or many other functions. The controller's two motor channels can either be operated independently or mixed to set the direction and rotation of a vehicle by coordinating the motion of each motor. Numerous safety features are incorporated into the controller to ensure reliable and safe operation. The controller's operation can be extensively automated and customized using Basic Language scripts. The controller can be reprogrammed in the field with the latest features by downloading new operating software from Roboteq.

Features List

  • USB, RS232, 0-5V Analog, or Pulse (RC radio) command modes
  • Available in version with CAN bus up to 1Mbit/s
  • Auto switch between USB, RS232, CAN, Analog, or Pulse based on user-defined priority
  • Built-in high-power power drivers for two brushed DC motors at up to 150A output per channel
  • Full forward & reverse control on each channel. Four quad- rant operation. Supports regeneration
  • Built-in programming language for automation and custom- ization
  • Operates from a single power source
  • Programmable current limit for each channel up to 2x150A for protecting controller, motors, wiring and battery.
  • Up to 11 Analog Inputs for use as command and/or feed- back
  • Up to 6 Pulse Length, Duty Cycle or Frequency Inputs for use as command and/or feedback
  • Up to 21 Digital Inputs for use as Deadman Switch, Limit Switch, Emergency stop or user inputs
  • Dual Quadrature Encoder inputs with 32-bit counters • 8 general purpose 24V, 1A output for brake release or accessories
  • Custom scripting in Basic language. Execution speed 50,000+ lines per second
  • Selectable min, max, center and deadband in Pulse and Analog modes
  • Selectable exponentiation factors for each command inputs
  • Trigger action if Analog, Pulse or Encoder capture are out- side user selectable range (soft limit switches)
  • Open loop or closed loop speed control operation
  • Closed loop position control with analog or pulse/fre- quency feedback
  • Precise speed and position control when Encoder feed- back is used
  • PID control loop with separate gains for each channel
  • Multi-range PID gains changing on-the-fly according to motor speed
  • Optional Mixed control (sum and difference) for tank-like steering
  • Configurable Data Logging of operating parameters on RS232 Output for telemetry or analysis
  • Built-in Battery Voltage and Temperature sensors
  • Optional 12V backup power input for powering safely the controller if the main motor batteries are discharged
  • Power Control wire for turning On or Off the controller from external microcomputer or switch
  • No consumption by output stage when motors stopped
  • Regulated 5V output for powering Encoders, RC radio, RF Modem or microcomputer
  • Separate Programmable acceleration and deceleration for each motor
  • Separate Programmable maximum forward and reverse power
  • Support for CANopen and two simplified CAN protocols
  • Ultra-efficient 1.5 mOhm ON resistance MOSFETs
  • Orderable as single channel version up to 300A
  • Stall detection and selectable triggered action if Amps is outside user-selected range
  • Short circuit protection with selectable sensitivity levels
  • Overvoltage and Undervoltage protection
  • Programmable Watchdog for automatic motor shutdown in case of command loss
  • Overtemperature protection
  • Diagnostic LED
  • Extruded aluminum, heat sinking enclosure for operation harsh shock and temperature environment
  • Efficient heat sinking. Operates without a fan in most applications.

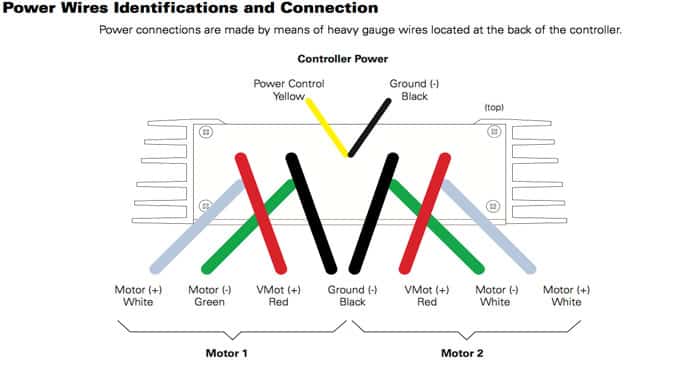

  • Dustproof and weather resistant. IP51 NEMA rating • Power wiring via heavy AWG8 cables

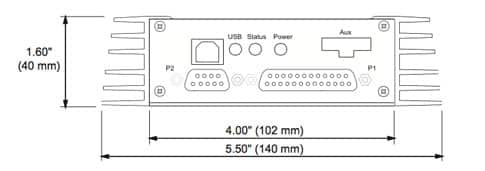

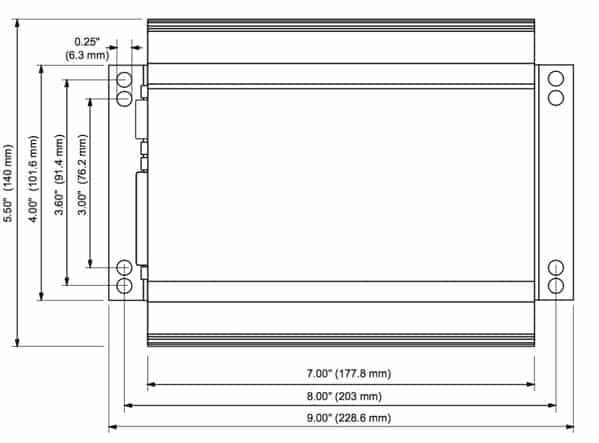

  • 9” (228.5mm) L, 5.5” W (140mm), 1.6” (40mm) H
  • -40o to +85o C operating environment
  • 3 lbs (1,350g)
  • Easy configuration, tuning and monitory using provided PC utility
  • Field upgradeable software for installing latest features via the internet


  • Industrial Automation
  • Tracking, Pan & Tilt systems
  • Terrestrial and Underwater Robotic Vehicles • Automatic Guided Vehicles
  • Police and Military Robots
  • Flight simulators
  • Telepresence Systems
  • Animatronics



  • Motor Type: Brushed
  • Max Voltage: 60
  • Number of Channels: 2
  • Direction: Forward/Reverse
  • Max Amps per Channel: 80
  • ON Resistance(mOhm): 3
  • Power Connections: Wires



  • Analog: Yes
  • RS232: Yes
  • USB: Yes
  • CANbus: Yes:
  • RC Pulse: Yes
  • MicroBasic Scripting: Yes
  • Control Loop(ms): 1


  • Max Analog Inputs: 11
  • Max Digital Inputs: 19
  • Digital Outputs: 8
  • Max Pulse Inputs: 6
  • Encoder: Yes


  • Cooling: Heatsink Extrusion
  • Dimensions: 228mm x 140mm x 40mm
  • Weight: 1500g

NOTE: Product lead time 1-2 Weeks(contact us for more information).



Component Type

Motor Controller

Motor Controller

Brushed DC

Number of Channels


Max Voltage


Max Amps per Channel

Product Details
Motor Type Brushed DC
Max Voltage 60
Number of Channels 1
Direction Forward/Reverse
Max Amps per Channel 150
Continuous Amps per Channel 80
ON Resistance (mOhm) 3
Power Connections Wires
Analog Yes
RS232 Yes
CANbus Yes
RC Pulse Yes
MicroBasic Scripting Yes
Control Loop (ms) 1
Regenerative braking Yes
Max Analog Inputs 11
Max Digital Inputs 19
Digital Outputs 8
Max Pulse Inputs 4
Encoder Yes
Cooling Heatsink Extrusion
Dimensions 228mm x 140mm x 40mm
Weight 1500g
