Filabot – Original EX2 Professional Filament Maker

$2,499.00$2,699.00

Filabot EX2 Filament Maker Highlights

  • Custom In-line Nozzle: Custom nozzle tapered to the tip for maximum flow efficiency and filament quality.
  • Universal Power Input: Available in 110VAC or 220VAC
  • Max Temp: 450°C
  • Programmable Temperature Controller: room temperature to 450°C
Clear
Category: SKU: Filabot - Original EX2 Professional Filament Maker Tag:

Description

Filabot – Original EX2 Professional Filament Maker

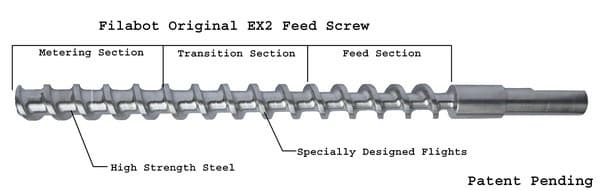

The Original EX2 Professional Filament Maker is a flagship extruder, and is 200% faster than our base model. Create custom filaments and recycle failed prints at industry leading speeds. The EX2 features a custom designed feed screw that we developed in collaboration with leaders in the plastics industry. Precision machined from high carbon steel, this screw is designed to feed, melt, mix, and pressurize plastics using the same mechanical principals found in industrial feed screws. The EX2 is capable of extruding 1 lb of filament in 30 minutes.

Filabot EX2 Trusted and Used By

Technical Specifications

  • Professional Enclosure: Powder coated steel base, enameled case
  • High-Performance Feed Screw: Allows for enhanced mixing, melting, and filament output.
  • Custom In-line Nozzle: Custom nozzle tapered to the tip for maximum flow efficiency and filament quality.
  • Universal Power Input: Available in 110VAC or 220VAC
  • Max Temp: 450°C
  • Programmable Temperature Controller: room temperature to 450°C
  • Extrude Rate: 10ipm to 60ipm plastic, diameter dependent. (~2lb/hr)
  • Filament Output: 1.75mm, 2.85mm, and 3mm with included nozzles
  • Extrudable Plastic Types: ABS, PLA, PC, HIPS, and PS
  • Feed Screw Speed: 35RPM, fully adjustable with optional speed control
  • Power Draw: ~500Watts
  • Enclosure Size: 17in by 7in by 8in
  • Warranty: Full, 1 Year Warranty

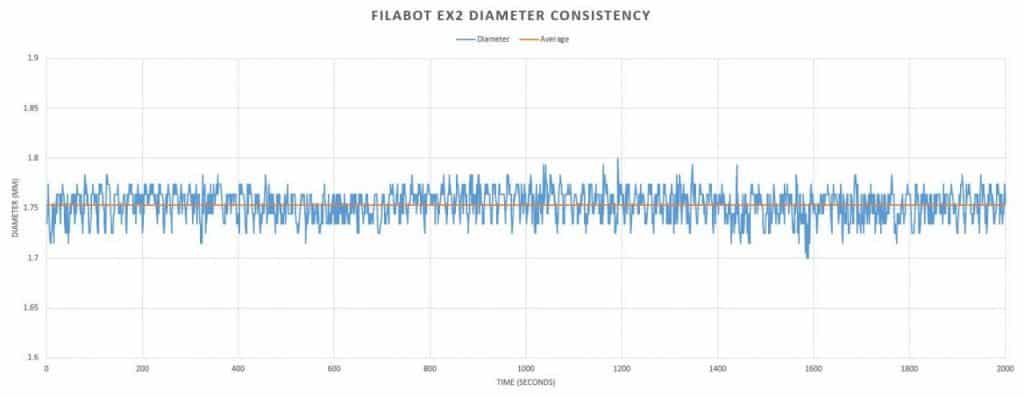

Diameter of PLA filament that was extruded on a Filabot EX2 system

  • Tolerance is well within the /- 0.05mm tolerance.

NOTE: **Voltage Note – the 110VAC or 220VAC specific to the country that you are going to be using the extruder system in. There is no operational difference between the 110VAC or 220VAC.

Additional information

Professional Enclosure

Powder coated steel base, enameled case

High-Performance Feed Screw

Allows for enhanced mixing, melting, and filament output

Custom In-line Nozzle

Custom nozzle tapered to the tip for maximum flow efficiency and filament quality.

Universal Power Input

Available in 110VAC or 220VAC (see options)

Max Temperature

450°C

Programmable Temperature Controller

Room temperature to 450°C

Extrude Rate

10ipm to 60ipm plastic, diameter dependent. (~2lb/hr)

Filament Output

1.75mm, 2.85mm, and 3mm with included nozzles

Extrudable Plastic Types

ABS, PLA, PC, HIPS, and PS

Feed Screw Speed

35RPM, fully adjustable with optional speed control

Power Draw

~500Watts

Enclosure Size

17" x 7" x 8"

Warranty

Full, 1 Year Warranty

Voltage

110VAC Version, 220VAC Version

Speed Control

No Speed Control (+$0.00), Add Speed Control (+$200.00)
