EZROBOT Revolution JD Humanoid Robot Kit

Comments | Write a review

Brand: EZROBOT

Availability: In stock

$499.00

Found it cheaper?

Click here to price match!

Available Options


EZROBOT Revolution JD Humanoid Robot Kit

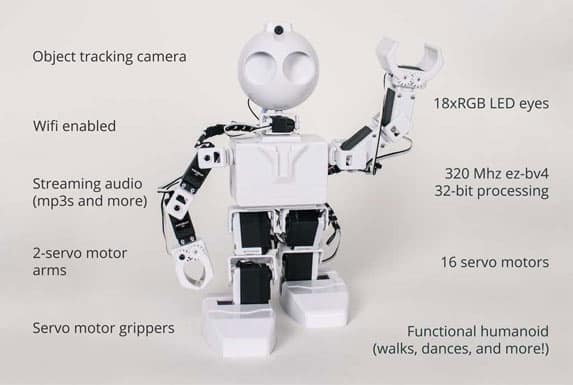

The JD Humanoid Robot Kit is a fully functional humanoid robot kit built with EZ-Bits. A humanoid design is not only fun, but also educational. He can interact with human tools and environments for experimental purposes, such as the study of bipedal locomotion. This humanoid boasts 16 degrees of freedom with metal gear heavy duty servo motors! The camera in the head of this robot can be used for vision recognition to track color, motion, glyphs, QR codes, faces and more. There are 18 RGB LEDs in the eyes of JD, which can be easily programmed and animated for unlimited expressions of up to 1 million colors. The included EZ-Builder Software makes it easy to create movements, programs and personalized mobile apps for your phone!

Features

Walks Right Away

JD includes apps that allows him to walk, right away. The EZ-Builder Software includes an amazing GAIT feature called Auto Positioner. This allows you to create frames and actions to animate the servo positions. The actions can be linked to any other control, such as Speech Recognition, Vision Tracking, Joysticks, Wii Controllers, and more.

Interactive

The eyes of this robot have 18 LEDs (9 per eye). Each LED can be configured up to 1 million color combinations. The head contains a camera which can track colors, faces, motion, glyphs and more.

Grippers

The compact grippers are powered by strong metal geared servo motors. They are useful for picking up and holding objects.

Education and Home

In the classroom or at home, EZ-Robot revolution has a big impact on education. Not only do students learn about robotics, they have fun doing it. With hundreds of tutorial videos, no questions are left unanswered. Personalizing EZ-Robot behaviours teach students how robots walk, see, hear and interact with their surroundings.

Easy-to-use Software

If hardware is the heart of your EZ-Robot, then software is the soul. Introducing EZ-Builder Robot Software. Your EZ-Robot is controlled by the World's easiest, most powerful and scalable robot software. EZ-Builder takes a productive and unique approach to programming your robot. Simply add behaviors such as Camera Tracking, Speech Recognition, Wii Controller, GPS, GAIT Positioning, and hundreds more!

Create Animations

Like a flip book, the Auto Position in EZ-Builder is used to animate your EZ-Robot. It's magic! The software will automatically calculate how to transition between your custom frames.

Mobile Support

Use your Android or iOS Mobile Device with an App from our EZ-Cloud App Store, or create your own App easily in our EZ-Builder Robot Software.

Vision Tracking

The camera enables advanced vision learning, detection and tracking abilities. Your EZ-Robot will interact with Objects, Colors, Faces, Motion, Glyphs, and QR Codes.

High Tech Brain

The EZ-B v4 is not only the brain of your EZ-Robot, it is also the World's most powerful and compact robot brain! The EZ-B v4 scales for beginner and advanced users. The EZ-B is two PCB's sandwiched together in a compact 2x2 inch package. For protection, the speaker and electronics are enclosed within a stylish white plastic shell with a speaker chamber for clear enhanced audio. For advanced users, the EZ-B may be removed from its casing and mounted directly in your custom robot.

Heavy Duty Servo Motor

Includes digital heavy duty 15 kg/cm servo motors! The metal gear and ball bearing internals will withstand a high load. These servos were designed with enough strength to enable your robots to walk, move or lift.


Behaviors

Easily customize behaviors of your robot with the click of a mouse... WiiMotes, Artificial Intelligence, Speech Recognition, and hundreds more.

Intutive

Includes a built-in 3D Robot Designer, Drag'n'Drop Controls, 3D Printing Supporting and more.. Everything you need to change the world!

Vision

Advanced vision features enable learning, detection and tracking abilities. Interact with Objects, Colors, Faces, Motion, Glyphs, and QR Codes.



Software

EZ-Builder Version 2014.11.30.00 Introducing EZ-Builder! The world’s easiest and most powerful robot control software designed exclusively for EZ-Robots. Scalable for beginner and advanced users, this software introduces amazing features that will bring your robot companion to life!

Minimum Operating System Requirements

  • Windows 7 minimum
  • Intel Pentium or AMD 64 or 32 Bit 1 GHz CPU
  • 2 GB RAM
  • 50 MB Drive space

Specifications

  • 200MHz 32-Bit Processing (120 MHz 32-bit Cortex M3 ARM Processor & 80 MHz Microchip PIC32)
  • Small Size (2.1" x 2.2")
  • WiFi connectivity (Ad-Hoc/Infrastructure/WEP/WPA/WPA2)
  • Embedded Web Server
  • Energy Efficient Digital Switching Power Supply
  • Resettable fuse protection
  • Reverse polarity protection
  • 1 x Amplified Speaker for Speech and Music
  • 8 x 5 volt tolerant Analog (ADC) ports
  • 24 x 5 volt tolerant Digital ports (servos, PWM, and more)
  • Up to 73 Servos (combining PWM and Dynamixel)
  • Dynamixel Servo Support
  • 3 x i2c Port
  • 1 x EZ-Robot Video Camera Port
  • 3 x High Speed UART Ports
  • Battery and Temperature Monitor

Heavy Duty Servos Specifications

  • Operating speed: 0.24sec/60degree (7.4V)
  • Stall torque: 15.0kg-cm/529 oz-in.(7.4V)
  • Temperature Range: -20C to +60C
  • Operating Voltage: 4.8V to 7.4V
  • 3 pole ferrite
  • Dual ball metal bearing
  • All metal gears
  • connector wire length: 32cm
  • Futaba 3f (25 teeth) for driving spline/shaft
  • 6.2mm spline (including teeth)

Dimensions

  • Width 17 cm
  • Length 11 cm
  • Height 30 cm
  • Weight 2.700 kg

Includes

  • 1 x EZ-B v4 WiFi Robot Controller
  • 1 x EZ-Builder Control Software with Apps
  • 1 x Humanoid Head with Camera & RGB Eyes
  • 1 x Humanoid Body
  • 6 x Lever Servo-motor
  • 2 x Servo-motor Gripper
  • 1 x Humanoid 2 Servo-motor Foot & Ankle (Left)
  • 1 x Humanoid 2 Servo-motor Foot & Ankle (Right)
  • 2 x Extension Cable
  • 1 x LiPo Battery 7.4VDC 1300mAh
  • 1 x LiPo Battery Balancer Charger
  • 2 x Wire Spiral Wrap (6" length)

You care about energy consumption with electronics. This is why EZ-Robot designed an innovative low energy digital switching power supply for our products. While most electronics dissipate heat to lower voltage, our products use an energy efficient power supply which generates practically no heat! Welcome to the future.

NOTE: Product lead time 1-2 weeks.


Brand

EZROBOT

Purpose

Education / Kids
Product Details
CPU 200MHz 32-Bit Processing (120 MHz 32-bit Cortex M3 ARM Processor & 80 MHz Microchip PIC32)
Connectivity WiFi connectivity (Ad-Hoc/Infrastructure/WEP/WPA/WPA2)
Speaker 1 x Amplified Speaker for Speech and Music
Servos Dynamixel Servo Support
Camera 1 x EZ-Robot Video Camera Port
