EVO 22 Large 3D Printer and Additive Manufacturing Center

$11,995.00

Print BIGGER. The EVO 22 offers the same industry-leading features as the EVO Additive Manufacturing Center, but has a towering 22.75-inch build height — making for a huge build volume of 3,276 cubic inches. Manufacture massive, real-scale parts using ABS, HydroFill Water-Soluble Support, polycarbonate, and over 40 other 3D-printing materials.

Description

Meet EVO 22, the Newest Member of the EVO Series

Get all of the cutting-edge features of the EVO Additive Manufacturing Center, but with an extra-large 3,276-cubic-inch build volume, with the new EVO 22. With a towering 22.75-inch Z-axis, the EVO 22 stands almost a foot above Airwolf 3D’s flagship EVO machine.

Whether you are looking to create massive, functional prototypes or actual production-ready parts, leverage EVO’s industry-first features and seamless user experience to manufacture parts that are larger and stronger than ever.

Large Build Chamber

Oversized Build Environment

Manufacture real-scale, end-use parts in over 40 different materials. Optimized for large-part production, the 12 x 12 x 22.75-inch enclosed build volume is ideal for producing large parts using ABS, HydroFill Water-Soluble Support, polycarbonate, and more.

TRI-HEAT™ TECHNOLOGY

Manufacturing large parts has never been easier, thanks to proprietary Tri-Heat™ technology. Two internal chamber heaters and a high-temperature heat bed create the optimal thermal environment for the formation of strong, smooth parts.

AUTO-LEVELING & CALIBRATION

Enjoy Airwolf 3D’s proprietary auto-leveling technology along with AutoPrime, and Sweep. Ultra-durable Extended-Life nozzles save time and money while providing higher precision, speed and efficiency.

3D Printer Air Filter

AIR CLEANSING SYSTEM

Breathe easy. An oversized air filtration system works to actively contain UFP and VOC emissions during the desktop manufacturing process. An ideal machine for school or smaller spaces.

Resume 3D Printing After Power Outage

PARTSAVE™

Gone are the days of losing hours of production time due to power failure, an accidentally unplugged machine, or other interruptions. Just turn your machine back on, and resume production where you left off.

3D printing restore print after interruption

FAILSAFE™

Print with peace of mind. Ensure that your print will continue, even if you run out of material or need to purge a clogged hot end. Simply place the print head where you left off and FailSafe™ will do the rest.

WHAT COMES WITH YOUR EVO ADDITIVE MANUFACTURING CENTER?

  • (1) Extra 0.80 mm Extended-Life Nozzle
  • (1) Double-Sided Flex-Resistant Glass
  • (1) 2 oz. Bottle of Wolfbite Premium Adhesive Solution
  • (1) 2-Pound Spool of ABS Filament (2.85 mm)
  • (1) USB Drive
  • (1) Nozzle-Cleaning Tool
  • (1) Subscription to APEX Pro 2018 (Coming Soon)
  • One-Year Parts and Labor Warranty
  • Six-Month Unlimited Technical Support

PARTSAVE™

For the first time in history, you can start, stop, and resume the 3D manufacturing process at any time, thanks to EVO’s industry-first PartSave™ technology. Gone are the days of losing prints due to machine failure, power failure, or accidental shutdown.

Whether you need to pause part production for one minute or one hundred years, PartSave™ ensures the 3D manufacturing process will be ready to continue as soon as you are.

GENESIS MICROCONTROLLER

Both the brain and heart of the EVO Additive Manufacturing Center, Airwolf 3D’s proprietary GENESIS Microcontroller drives the leaps and bounds that EVO has made in desktop additive manufacturing technology.

Fully proprietary and engineered from the ground up to support high-performance industrial manufacturing, the GENESIS board is an automotive-grade 32-bit redundant embedded controller that delivers 2-3 times higher speeds, more precision, and greater control at ultra-high temperatures than any other desktop 3D manufacturing system on the market.

TRI-HEAT™ TECHNOLOGY ENSURES PART INTEGRITY AND KEEPS FILAMENT DRY

Manufacture the highest quality parts possible on a desktop additive manufacturing system, thanks to the EVO’s proprietary Tri-Heat™ technology. Two internal heaters and a high-temperature bed maintain precise temperature control and heated airflow for optimum manufacturing of stronger, smoother, higher-quality engineering-grade parts from materials including ABS, nylon, and polycarbonate.

The Integrated Filament Drying System further facilitates optimal printing conditions, drying up to 10 pounds of material at a time for immediate extrusion or long-term storage.

FASTER, MORE PRECISE PART PRODUCTION

EVO’s advanced feature set empowers users to build larger, higher quality parts at faster speeds. Located within inches of the extrusion tip, multiplied-force feeders maximize speed and precision of layer deposition while dual high-flow extrusion heads resist jams and clogs. To fully support the manufacturing of oversized parts, the fully enclosed chamber is outfitted with Tri-Heat™ technology and an Integrated Filament Drying System to ensure superior heat and material management.

BALL SCREW Z STAGE

The EVO’s bulletproof z stage comprises a proprietary coupling linking a ball screw with a stepper motor and is powerful enough to support up to 50 pounds and provides precision of nearly one thousandth of an inch over its 11-inch build height, providing incredible accuracy.

Approximately the size of a human hair, the precision movement is barely discernible by the human eye.

OVER 40 MATERIALS, INCLUDING METAL

Manufacture in over 40 materials ranging from PLA and ABS to exotic materials like metal, carbon fiber-reinforced nylon, polycarbonate, and HydroFill Water-Soluble Support. Produce larger, more complex parts than ever before, thanks to the carefully controlled thermal environment offered by EVO’s Tri-Heat™ Enclosed Build Chamber and Integrated Filament Drying System.



Additional information

Weight 150 lbs
Dimensions 40 × 30 × 29 in
SHIPPING WEIGHT

150 lbs

SHIPPING DIMENSIONS

40 x 30 x 29 inch

EXTRUDER CONFIGURATION

Planetary Direct Drive

BUILD VOLUME

12" x 12" x 22.75", 305 mm x 305 mm x 578mm

TRAVEL SPEED

125+mm/sec MAX

MAX. EXTRUDER TEMP.

315°C

MAX. BED TEMP.

160°C

MINIMUM LAYER HEIGHT

40 microns

CALIBRATION

Auto-Leveling

MATERIALS

Metal, Over 40, incl. ABS, PC, PP, Nylons, TPE, TPU

FILAMENT SIZE

2.85mm +/-0.10

NOZZLE SIZE

0.8 mm Heavy Duty included, 1.0 mm, 0.5 mm and 0.35 mm optional

WEIGHT (LBS)

75 lbs.

DIMENSIONS

36" x 28" x 24.5"

FRAME CONSTRUCTION

One-piece aluminum main frame, polycarbonate

MOTION SYSTEM

Core XY

ENCLOSED PRINT CHAMBER

Yes

HEATED BED

Yes

PRINT PLATE MATERIAL

Borosilicate Glass

COOLING FANS

Dual Part Cooling, Single 60 mm Extruder

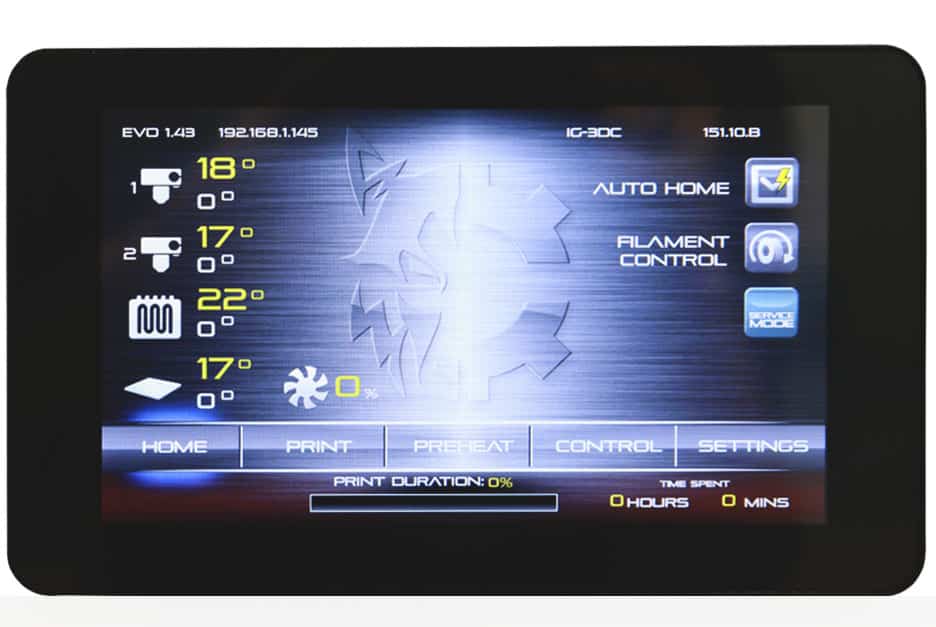

DISPLAY

Touchscreen 7"

PROVIDED SOFTWARE

APEX, APEX Pro (Coming Soon)

CONNECTIVITY

Ethernet, USB Cable, USB Drive

PRINT VIA REMOVABLE DEVICE

USB Drive

MAINTENANCE TOOLS INCLUDED

Allen Wrenches, Micro Drill Bit Set

ACCESSORIES INCLUDED

(Printer Only), 0.80 Extended-Life Nozzle, Nozzle-Cleaning Tool, Wolfbite 2 oz., 2 Spools ABS, 1 USB Drive

FILAMENT INCLUDED

Yes

BED ADHESIVE

Wolfbite MEGA, Wolfbite NANO, Wolfbite NITRO, Wolfbite Original, Wolfbite ULTRA

WARRANTY

12 Month, by Manufacturer
