AXIOM Single Head 3D Printer

$4,195.00

Axiom 3D Printer Highlights

  • Large Build Volume of 912-cubic-inch or 12 x 8 x 9.5 inch
  • High temperatures hot end 315°C (599°F) and is designed to resist troublesome clogs.
  • Interchangeable nozzle that are available in .80mm, .50mm or .35mm sizes and are easy to swap out.
  • Auto leveling. The AXIOM Direct Drive 3D printer automatically calibrates its print bed ensuring optimal bed leveling and head spacing before beginning every print.
  • 40+ materials which is more than any other 3d printer.

99 in stock

Description

AXIOM 3D Printer with Direct Drive (Single Extruder)

Step up your 3D printing game with the new AXIOM Direct Drive. Outfitted with all the components that make AXIOM the industry leader in desktop 3D printers, AXIOM Direct Drive 3-D printer features a direct drive extruder assembly that makes it easier for users to create complex objects out of traditionally difficult-to-use materials.

From flexible materials like TPE and TPU to strong, tough materials like polycarbonate and polypropylene, AXIOM Direct Drive delivers clean, beautiful prints. And the power of Direct Drive doesn’t stop there. No matter what you’re printing, the direct drive system provides more room for error. Even if your settings aren’t perfect, it is very difficult to mess up a print.

Once the provenance of engineering professionals and other expert-level users, gorgeous 3D prints in advanced materials are now possible for less experienced users and more mainstream applications.

Take 3D printing to a whole new level and go direct with AXIOM Direct Drive.

WHAT COMES IN THE BOX?

  • Direct Drive Single Extrusion System
  • CoreXY Motion Control System
  • Active Automatic Bed Leveling System
  • Easy Feed Filament System
  • High Strength Extruded Aluminum and Injection Molded Polycarbonate Enclosure
  • Fully Enclosed Print Theater
  • .50 orifice nozzle (.35 orifice nozzle  is optional)
  • (1) Double Sided Flex-resistant Glass
  • (1) 2oz bottle of Wolfbite Premium Adhesive Solution
  • (1) 1 pound spool of ABS filament (3 mm)
  • 1-Year Parts and Labor Warranty
  • 6 Months Unlimited Technical Support

THE AXIOM SIGNATURE SUITE OF FEATURES

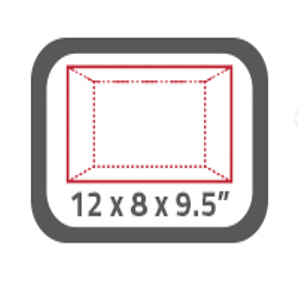

Large Build Volume

The AXIOM Single Extruder 3D Printer’s 912-cubic-inch build volume allows for very large 3D prints, making it the ideal desktop solution for rapid prototyping and manufacturing functional products.
Build Volume of AXIOM 3D Printer

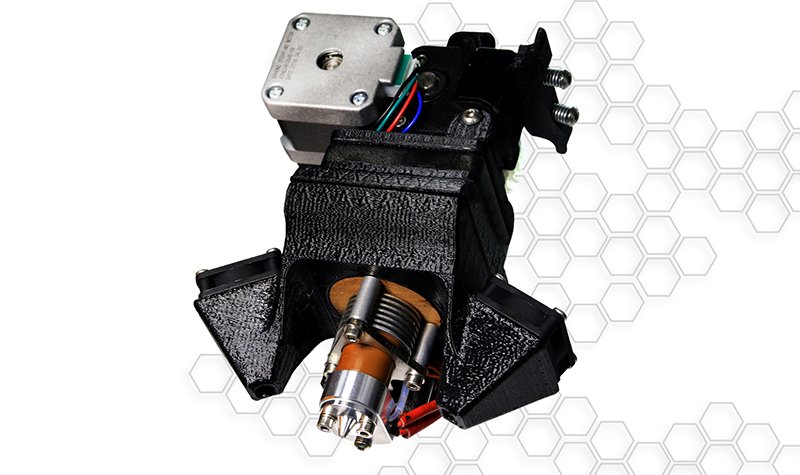

High Temperature Hot End

The AXIOM 3D Printer’s improved Single JrX Hot End reaches controlled temperatures of 315°C (599°F) and is designed to resist troublesome clogs. Capable of 3D printing at high temperatures is an essential configuration for printing engineering grade  materials.
3-D Printer Single Extruder

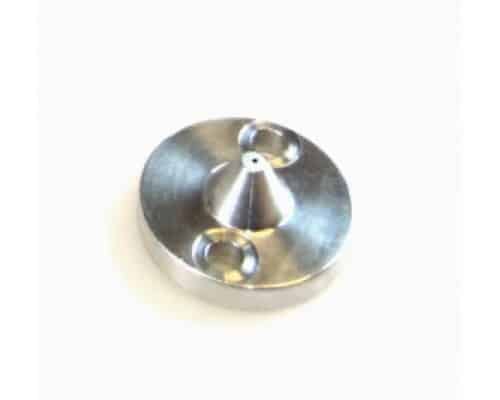

Interchangeable Nozzles

Nozzles are available in .80mm, .50mm or .35mm sizes and are easy to swap out. To achiever finer detail on prints, swap out the standard .50mm nozzle for a smaller .35mm nozzle or try a .80mm for bigger, faster prints.
Interchangeable Nozzles

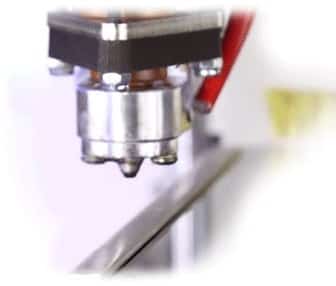

Auto Leveling

The AXIOM Direct Drive 3-D printer automatically calibrates its print bed ensuring optimal bed leveling and head spacing before beginning every print.
3-D Printer with Auto Leveling

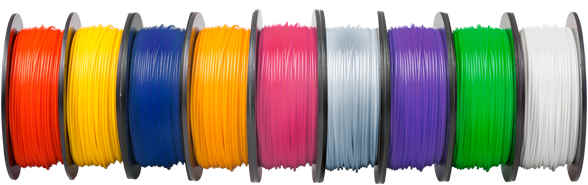

More Materials Than Any Other Desktop 3D Printer

The AXIOM 3-D printer is capable of printing in most thermoplastic materials. The ultimate tool for design and manufacturing, the AXIOM empowers you to print prototypes in your end-use material. Print LARGE parts in high-temperature polycarbonate, ABS, and polypropylene or print in “finicky” flexible materials like TPE and TPU.
Print in Lots of Filaments

Additional information

Weight85 lbs
Dimensions28 × 25 × 29 in
SHIPPING WEIGHT

85 lbs

SHIPPING DIMENSIONS

28 x 25 x 29 in

EXTRUDER CONFIGURATION

Single Direct 3D Printer

BUILD VOLUME

12.5" x 8" x 10"; 317 mm x 203 mm x 254 mm

RECOMMENDED MAX. PRINT SPEED*

100 mm/sec

TRAVEL SPEED

125+ mm/sec

MAX. EXTRUDER TEMP.

315°C

MAX. BED TEMP.

140°C

MINIMUM LAYER HEIGHT

40 microns

RECOMMENDED LAYER HEIGHT

200 microns

CALIBRATION

Auto-Leveling

UPGRADEABLE

Yes

MATERIALS

Over 40, incl. ABS, PC, PP, Nylons, TPE, TPU

FILAMENT SIZE

2.85mm +/-0.10

WEIGHT (LBS)

61 lbs.

HEIGHT (IN)

23.5"

WIDTH (IN)

23.5"

DEPTH (IN)

19.5"

FRAME CONSTRUCTION

Aluminum, Polycarbonate

MOTION SYSTEM

Core XY

ENCLOSED PRINT CHAMBER

Yes

HEATED BED

Yes

PRINT PLATE MATERIAL

Borosilicate Glass

COOLING FANS

Tri-Fan

DISPLAY

ViKi LCD

INTERCHANGEABLE NOZZLES

Yes

PROVIDED SOFTWARE

APEX

CONNECTIVITY

Ethernet, Micro SD, USB Cable, Wi-Fi

PRINT VIA REMOVABLE DEVICE

SD Card

CLOUD-BASED PRINTING

Yes

MAINTENANCE TOOLS INCLUDED

Allen Wrenches, Micro Drill Bit Set

ACCESSORIES INCLUDED

1 Filament Spool, 1 Nozzle (0.50 mm), 1 WolfBite (2 oz.), Glass, Manual, Micro Drill Bit Set, Power Cord, Rambo Kit, SD Card, Spool Holder, USB, USB Adapter, USB Cord

FILAMENT INCLUDED

Yes

BED ADHESIVE

Wolfbite MEGA, Wolfbite NANO, Wolfbite NITRO, Wolfbite Original

WARRANTY

12 Month, by Manufacturer

EMAIL SUPPORT

[email protected]
